K-Array KR102 Mark I Powered Stereo System

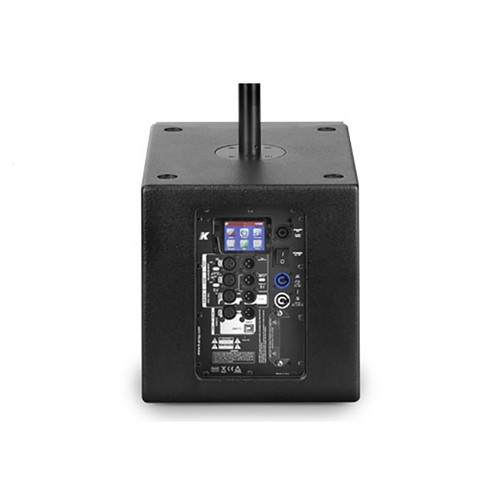

All the systems feature two channels of class D amplification, housed in the sub-woofer. The rear panel provides input for a balanced line signal, a balanced microphone signal with phantom power and digital signals in AES/EBU protocol, also on an XLR for ease of cabling. An integrated touch screen provides intuitive managing and editing of powerful DSP controlling: Input and output levels, internally generated test signal, In/Out routing, subwoofer delay (up to 12 ms.), speakon output to the Mid-H element with delay (up to 12 ms.) and overall system delay (up to 330 ms.) All DSP functions, including EQ can be controlled with remote managing software via USB or RS485, again, conveniently on a standard XLR.

There are 40 different DSP presets, specifically made by K-Array to optimize the systems performance for the variety of device configuration available. In addition the user can also create, save and store his/her own personal presets on the module. The unique four-corner port configuration gives symmetrical back loading to the sub speaker for extended bass response with very low distortion. This also gives incredible structural strength to the cabinet despite its light weight. Pocket handles in the sub and an M20 thread mount position for attaching mid-high speakers, with a variety of mounting and rigging hardware options make the latest additions to the K-Array Redline Series very versatile in almost any application and in every type of venue.

The KR102 features a pair of KMT12 (12") subs each with 2 channels of 1,000 Watts matched to a KK102 with 16 x 2" Neodymium speaker elements. All Redline systems are designed by the K-Array R&D department and custom-made under the K-Array quality control system.
