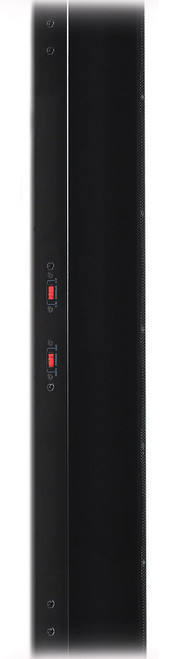

K-Array KP102 Mark I Passive Line Array Speaker

The vertical dispersion pattern can be switched for wide or narrow coverage, allowing for a great variety of applications. The twelve closely spaced cone drivers provide true line Array characteristics - phase coherence, low distortion and focused listening in both the near field, and at a distance from the speaker.

A variety of rigging accessories provides many linking and hanging options for the KP102 (0.5 meter) and the smaller (1 meter) KP52 to be combined in vertical and horizontal line Array configurations to satisfy many different venue requirements during temporary events and for permanent installations. For easier use and integration with other speakers or amplifiers, the KP102 allows the user to select two different values of impedance (4Ω – 16Ω). At 16Ω as many as four KP102 speakers can be powered off a single amplifier channel, which eliminates the need of 70 V amplifiers for wider distributed installed systems.

The KP102 is able to reproduce the whole vocal frequency range with high intelligibility, starting from 100 Hz. Integrating one of the Redline series powered subwoofers (KMT12, KMT18, KMT21), configured with specific presets for the KP102 assures excellent coverage of the entire musical frequency range.

The K-Array KA amplifier series have pre-sets optimized for KP102 use that can be uploaded from a computer. All KP102 components are designed by the K-Array R&D department and custom-made under the K-Array quality control system.
